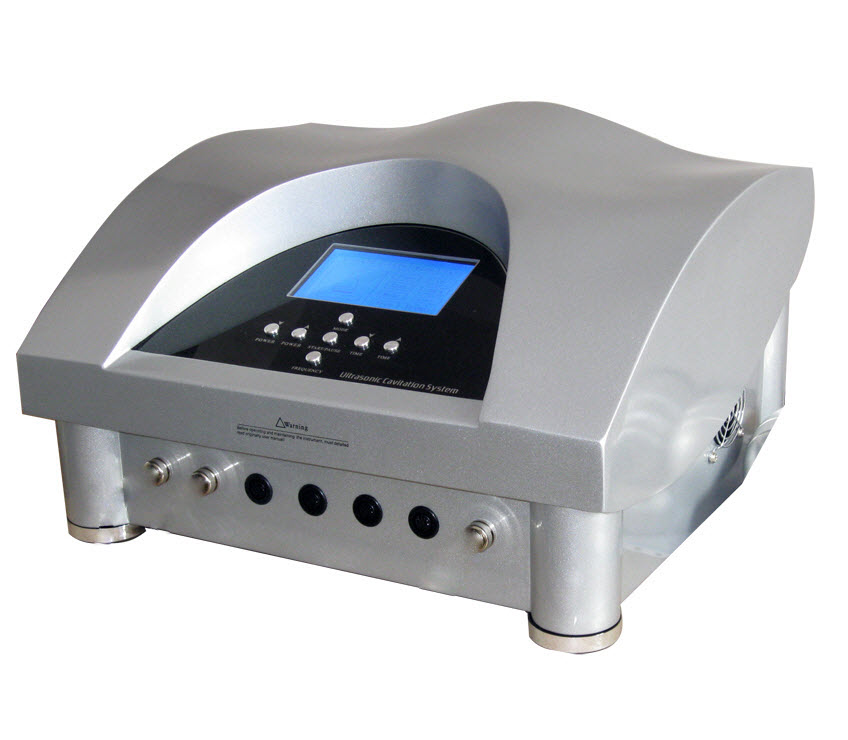

Ultrasonic Cavitation System(desk-top model)

Principle:
This slimming ultrasound machine combines all the latest beauty technologies in only one system, including ultrasound cavitation fat blasting, high intensity focused ultrasound and low frequency ultrasonic slim. It is proved very effective for fat removal, cellulite reduction, body shaping and skin tightening.
The treatment handpiece includes the 3 MHz & 1MHz ultrasound for body and 1.4MHz ultrasonic for face,and the newest ultrasonic cavitation wavelength at 47 KHz.
Ultrasonic Cavitation System is able to act on the skin surface ( 3MHZ ultrasound ) providing skin tightening as well in the deep layers, ( cavitation ) providing “ real “ results, after the treatment, in terms of cellulite and localized adiposity. It is able to gently and safely eliminate centimetres of belly, buttocks, hips and thighs without any side effect!
Ultrasonic waves in a specific range from 20 to 70 KHz are able to cause the so called “cavitation” effect: focused high energy waves creates micro bubbles of vapour inside the adiposities and in the interstitial liquids of cellulite; thanks to the liquid’s alternation of several phase, expansion and compression, the adiposities implodes with the consequent release of water and fat that is going to be metabolized by the liver.
Acoustic cavitation. In a non-flowing system the ambient pressure can be varied by sending sound waves through the liquid. The ultrasonic sound waves are made up of alternate compressions and rarefactions. During the rarefaction cycle (low pressure) a lot of microscopic bubbles will grow and during the compression cycle (high pressure) each bubbles undergoes a collapse or implosion.
APPLICATION
•Fat removal and Cellulite reduction
•Enzymatic liposis, skin toning
•General reduction of waist, abdomen & buttocks
•Body shaping and contouring
•Skin tightening and rejuvenation, improve elasticity and tone.
•Scars/wrinkle smoothing
Specification:
Power supply:  AC 110V-230V 50/60Hz;
Ultrasoud emitters:  8 plate × 3 emitters each =tot.24 emission heads
1 hand piece for physiological cavitation effect
1 hand piece for high intensity focused ultrasound
1 hand piece for medium frequency ultrasound
1 Mhz for Ultrasonic plate
3 Mhz for HIFU
Frequency 47 Khz for cavitation treatment
1.4 Mhz for medium frequency ultrasonic
Quantity of outputs:  Max 11 channels
Output power :  Adjustable from 10 to 100% for every channel
Maximumsuface:  0.9W/cm2(max) for plates treatment
Power density:   5.0W/cm2(max) for cavitation treatment
 3.0W/cm2 for HIFU treatment
 2.5W/cm2 for medium treatment
 8mm Ultrasonic plate
 Diameter 80 mm for HIFU
 80 mm for Cavitation
 45mm for Medium frequency
Programs:  Single working programs for Cavitation.
  HIFU and Ultra Plate and medium ultrasonic
  Wave form Pulse and Continuous
Duration of the Treatment: Adjustable from 5 to 50 minutes by steps of 5 minutes
Display: LCD minitor
Weight: 21 KGS
Certification: CE Class 1
